    Dean Steel Buildings holds Underwriter Laboratory, Florida Product Approval and Miami-Dade NOA on their panels.

    Panel Part Numbers

    RTA6-200406

    RT Panel Type:
    PS = PRO SEAM
    RT = RIB TWELVE
    RS = RIB SIX
    SP = SHADOW PANEL
    FS = FLAT STOCK
    A For PS:
    A= 12″ wide
    B= 18″ wide
    C= 24″ wide
    For RT, RS, SP:
    A= Standard
    B= Left Miter
    C= Right Miter
    H= UL 90
    6 Gauge ( 4 – 24 GA, 6 – 26 GA)
    – Miter or Pitch Code *
    20 Length in feet
    04 Length in inches
    06 Length in sixteenth inches

    * Miter or Slope Code

    A 0:12 J 4:12
    B 0.5:12 K 4.5:12
    C 1:12 L 5:12
    D 1.5:12 M 5.5:12
    E 2:12 N 6:12
    F 2.5:12 X SPECIAL
    Note: Dimension for Miter panels should be the overall length. Miter panels available only for RT and SP type panels.


    36″ Ribbed Panels



    RIB TWELVE

    SHADOW PANEL

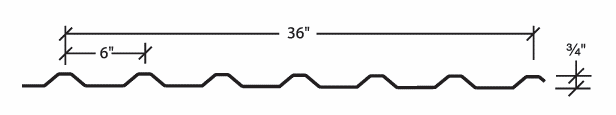

    RIB SIX

    Ribbed Panels are available in Galvalume™, both in 24 and 26 GA (80 ksi and 50 ksi yield), and in different colors (See Color Selection for availability). Special colors are also available.

    Ribbed Panels notes:
    1. Panels sold as component parts carry no finish guarantees.
    2. Squares are net coverage on width of 36″. Figure end laps as required.
    3. Panels with purlin bearing leg are available in Rib-12 Galvalume™.
    4. Rib Six panels only available from Fort Myers plant.
    5. Panel availability subject to change without notice. Check with your Estimator for current availability.

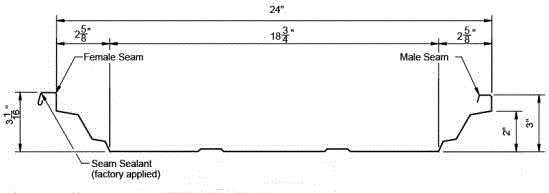

    Pro Lok Panels

    Pro Lok notes:
    1. Pro Lok panels have limited color selections.
    2. All panels are factory notched at both ends.
    3. Oil canning is not a cause for rejection.
    4. See our Brochures
    and Installation Manuals.
    6. Export available. Please call your Estimator for more information


    Pro Lok Accessories
    (For Rib panels accessories please see Flashing and Hardware)

    Part No.

    Finish Length/Size Weight (lbs)


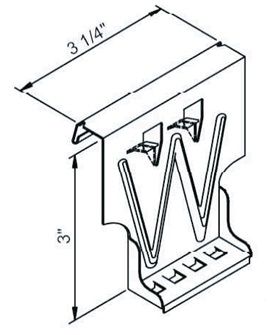

    ZERO OFFSET CLIP

    HW9117 3″ .18


    LOW FIXED CLIP

    HW9118 3-3/8″ .20


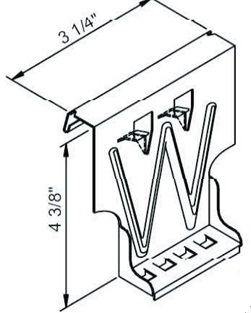

    HIGH FIXED CLIP

    HW9119 4-3/8″ .25

    LOW FLOATING CLIP
    HW9120 3-3/8″ 0.4

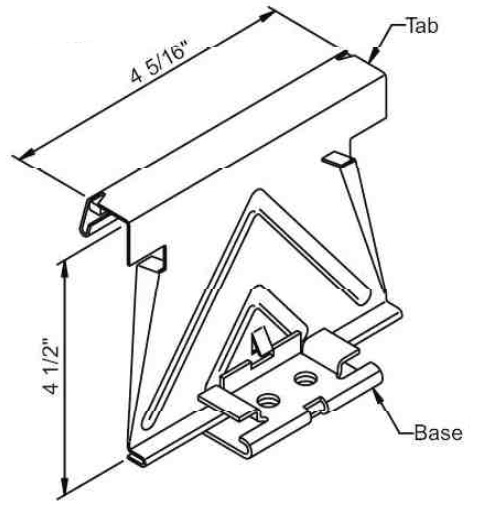

    HIGH FLOATING CLIP
    HW9121 4-1/2″ .45

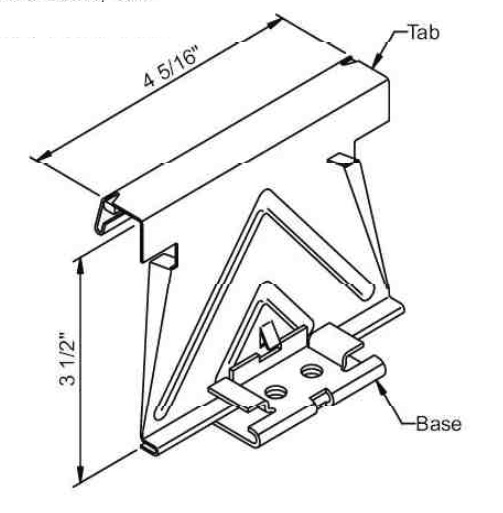

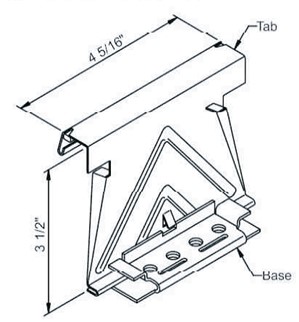

    LOW FLOATING CLIP
    HW9122 3-1/2″ .35

    HIGH FLOATING CLIP
    HW9123 4-1/2″ .39

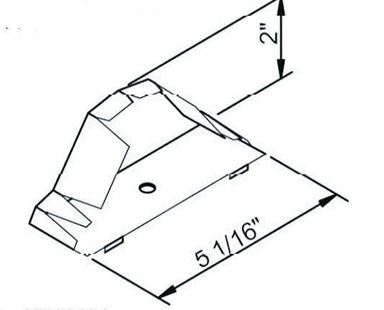

    CORRUGATION CLOSURE

    HW9124 GL 2″ .24
    HW9124 PVdF 2″ .24

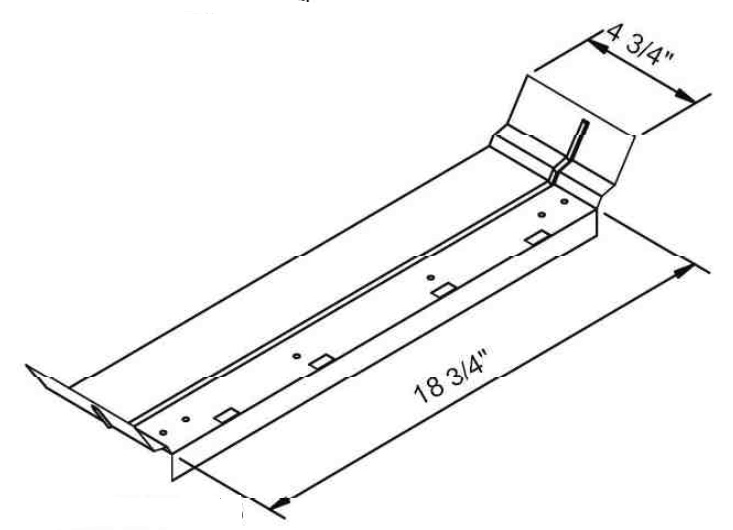

    END DAM
    24 GA METAL – FOR USE AT RIDGE, ROOF PENETRATIONS, ETC.
    HW9125 GL 24″ 1.09
    HW9125 PVdF 24″ 1.09

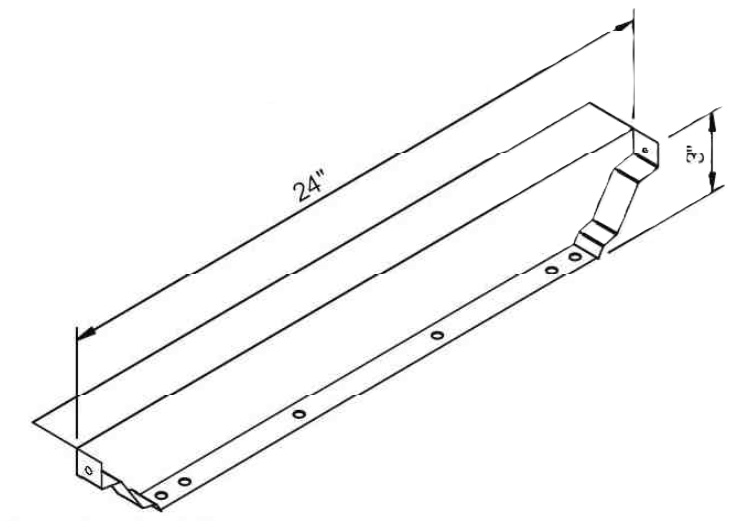

    ENDLAP BACK-UP PLATE
    FOR USE AT ENDLAPS AND AT RIDGE, USE OVER PLYWOOD DECK.
    HW9126 GL 24″ 2.40

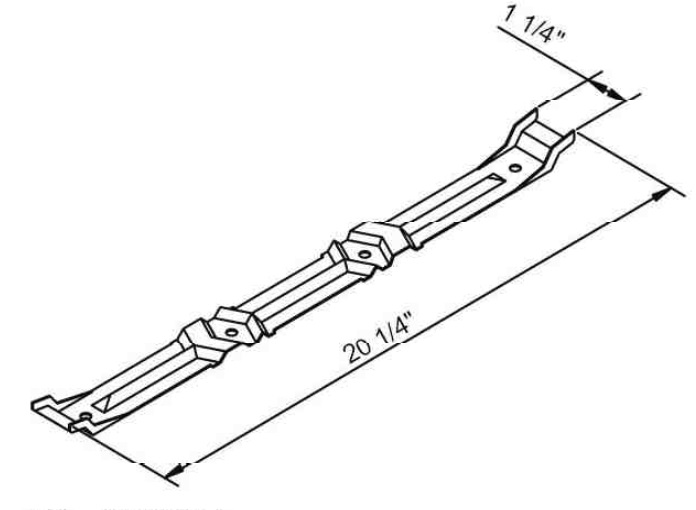

    CINCH STRAP
    -FOR USE AT ENDLAPS TO COMPLETE THE COMPRESSION JOINT.
    HW9127 Stainless Steel 24″ .34

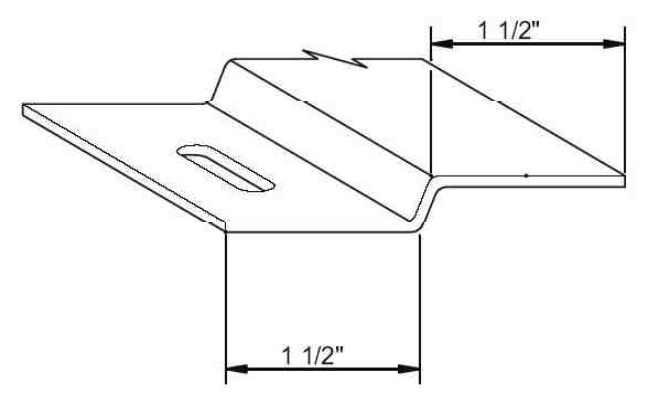

    LOW PERIMETER PLATE
    AN1135 GNZ 10′-0″ 8.47

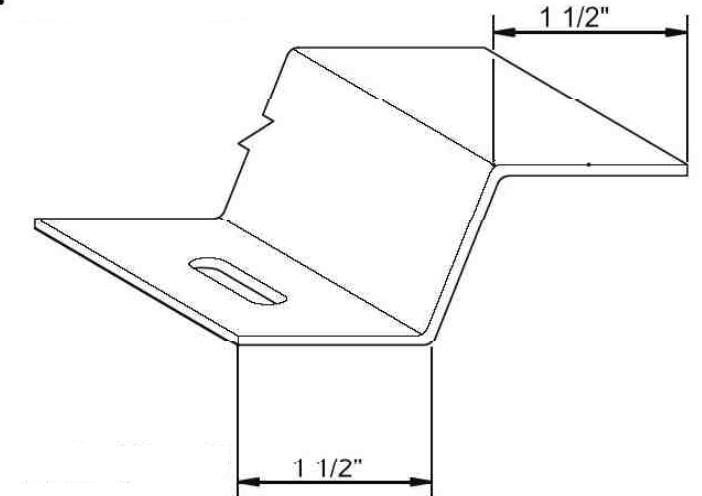

    HIGH PERIMETER PLATE
    AN1136 GNZ 10′-0″ 8.47

    BRACING STRAP
    AN1265 Varies 1-1/2″x100′ roll 14
    AN1267 Varies 1-1/2″x25′ roll 3.5

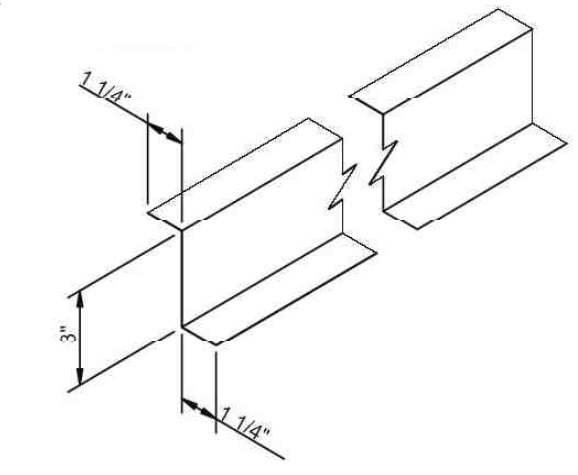

    TERMINATION ZEE
    FTZ4-100200 GL 24″ 4.54
    FTZ4-100200 PVdF 24″ 4.54

    THERMAL SPACER
    POLYSTYRENE BLOCK USED TO INCREASE THE INSULATION CAPACITY ALONG THE PURLINS. (WITH HIGH SYSTEM ONLY)
    HW9049 – 3″x1″x23-7/8″
    (use with 2″-3″ ins)
    .09

    SELF-TAPPER
    ZAC®
    HW5502 GNZ/PVdF #14×3/4″ ZAC®
    3/8″ hex head with washer. Long life exterior fastener. Light gauge to light gauge.
    2000/CTN

    BLIND RIVET
    ZAC®
    HW5780 GNZ/PVdF 1/8″dia x 3/16″ 2000/CTN


    -LOW FLOATING RAKE SUPPORT

    AN1272 Red 20′-0″ 20.9


    -HIGH FIXED RAKE SUPPORT

    AN1273 Red 10′-0″ 16.0

    -HIGH FLOATING RAKE SUPPORT
    AN1274 Red 20′-0″ 24.8

    -SPLICE TAPE SEALER
    A 100% SOLIDS, BUTYL BASED ELASTOMERIC MATERIAL
    HW9050 – 1-5/8″x1/8″x30′ 2.3

    -TAPE SEALER
    HW5775 – 1/2″x3/32″x45′ 1.4
    HW5721 – 7/8″x3/16″x25′ .8

    -MINOR RIB TAPE SEALER
    HW9113 – 1-3/8″x7/32″x4″ .07

    -GUTTER SEAL
    HW5720 CLR 10.6 oz .7

    -SPACER TOOL
    FOR MAINTAINING PANEL MODULE
    HW9021 PVC 24″ 2

    -SHAPING TOOL
    HW9052 PVC 3’x6″ 5

    -SELF-DRILLER
    PLATED STEEL
    HW9053 GNZ/COL 1/4″-14×1-1/4″ Tek®/2
    5/16″ hex, no washer closures
    Purlin bracing to purlin
    Rake angle to purlin
    Eave Plate to eave strut
    Optional clip fastener (Non-UL 90) 2000/CTN
    40/CTN

    -SELF-DRILLER
    W/SHOULDER PLATED STEEL
    HW9054 GNZ 1/4″-14×1-1/4″ Shoulder Tek®/2
    5/16″ hex head, no washer. Floating rake support to rake angle. 2500/CTN
    40/CTN

    -SELF-DRILLER
    PLATED STEEL
    HW9055 GNZ/COL 1/4″-14×1-1/4″ Tek®/2
    5/16″ hex head with washer. Optional exterior fastener. UL90 Clip to purlin. 2000/CNT
    40/CTN

    -SELF-DRILLER
    PLATED STEEL
    HW9061 GNZ #12-24×1-1/4″ Tek®/4
    5/16″ hex head with washer. Clip to bar joist fastener. Rake angle to joists. 2500/CTN
    68/CTN

    -SELF-DRILLER
    ZAC®
    HW9057 GNZ/COL 1/4″-14×1-1/4″ ZAC®
    3/8″ hex head with washer. Long life exterior fastener. Light gauge to heavy gauge. 2000/CTN
    75/CTN

    -PRO SEAM RIDGE FLASHING
    FRC6-100200 GLM/COL 10′-2″ 24.5
    FL4410
    for Ridge Cap closure
    GLM/COL .32

    -RIDGE SUPPORT ANGLE
    ANB4C020400
    9″ Monovent
    GNZ 2′-4″ 1.97
    ANB4C021002
    12 ” Monovent
    GNZ 2′-10 1/8″ 2.4

    -PRO SEAM GUTTET BRACKET
    FIELD ASSEMBLY REQUIRED; FASTENER NOT INCLUDED
    HW5647 GNZ 1:12 .6
    HW5648 GNZ 4:12 .6

    -VARIABLE TERMINATION TRIM
    FTP6-100200 GLM/COL 10′-2″ 19.5
    FTP4-100200 GLM/COL 10′-2″ 19.5

    -PRO SEAM RAKE TRIM
    FRP6-100200 GLM/COL 10′-2″ 19.5
    FRP4-100200 GLM/COL 10′-2″ 19.5

    -PEAK BOX
    FNP-010500
    Need Slope Code
    GLM/COL 1′-5″ 1.7

    -HIGH SIDE SCULPTURED EAVE FLASHING
    FEH6-100200 GLM/COL 10′-2″ 19.5

    -SCULPTURED GUTTER END
    FL4204 COL RH .5
    FL4205 COL LH .5

    -PRO SEAM EAVE FLASHING
    FEP6-100200
    ( “-” For slope Code)
    GLM/COL 10′-2″ 4.9

    -GUTTER
    GUA6-200700 COL 20′-7″ 29.7
    GUA4-200700 COL 20′-7″ 38

    -RAKE SLIDE
    FRS6-100200 COL 10′-2″ 3.7

    -SCULPTURED RAKE TRIM END CAP
    FL4217 COL RH .6
    FL4218 COL LH .6
